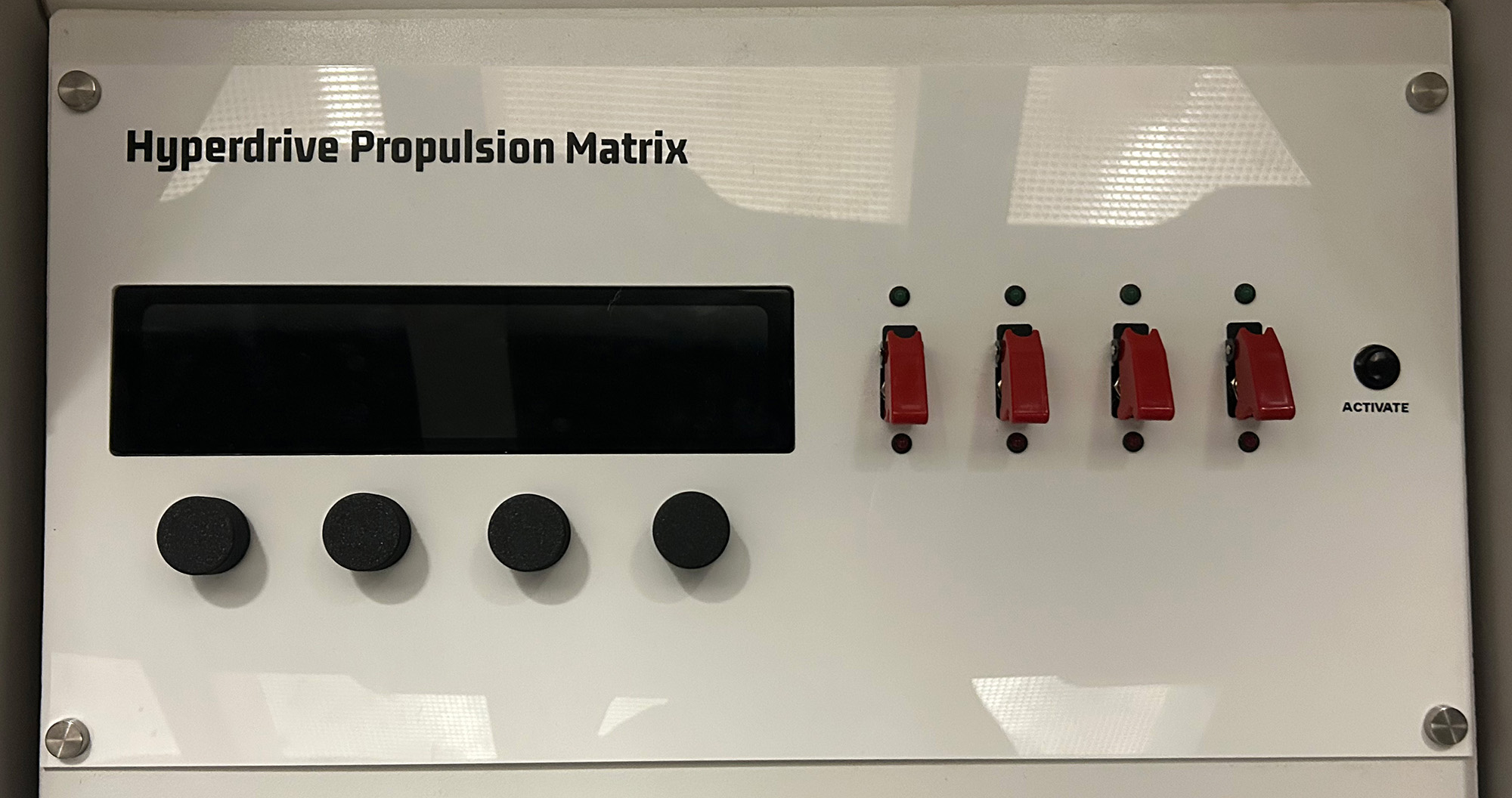

Hyperdrive Propulsion Matrix

The Challenge

Players must correctly mix the shuttle's fuel to solve this puzzle. The correct mixture (55% Oxidizer, 25% Fuel, 10% PBAN, Type 3) represent a specific propellant formulation found in the Captain's log.

With 101 values for each percentage encoder and 5 mixture types, there are over 5 million possible combinations (101³ × 5), making brute force impossible.

The persistent values mean players can work together, with different team members adjusting different components without losing progress.

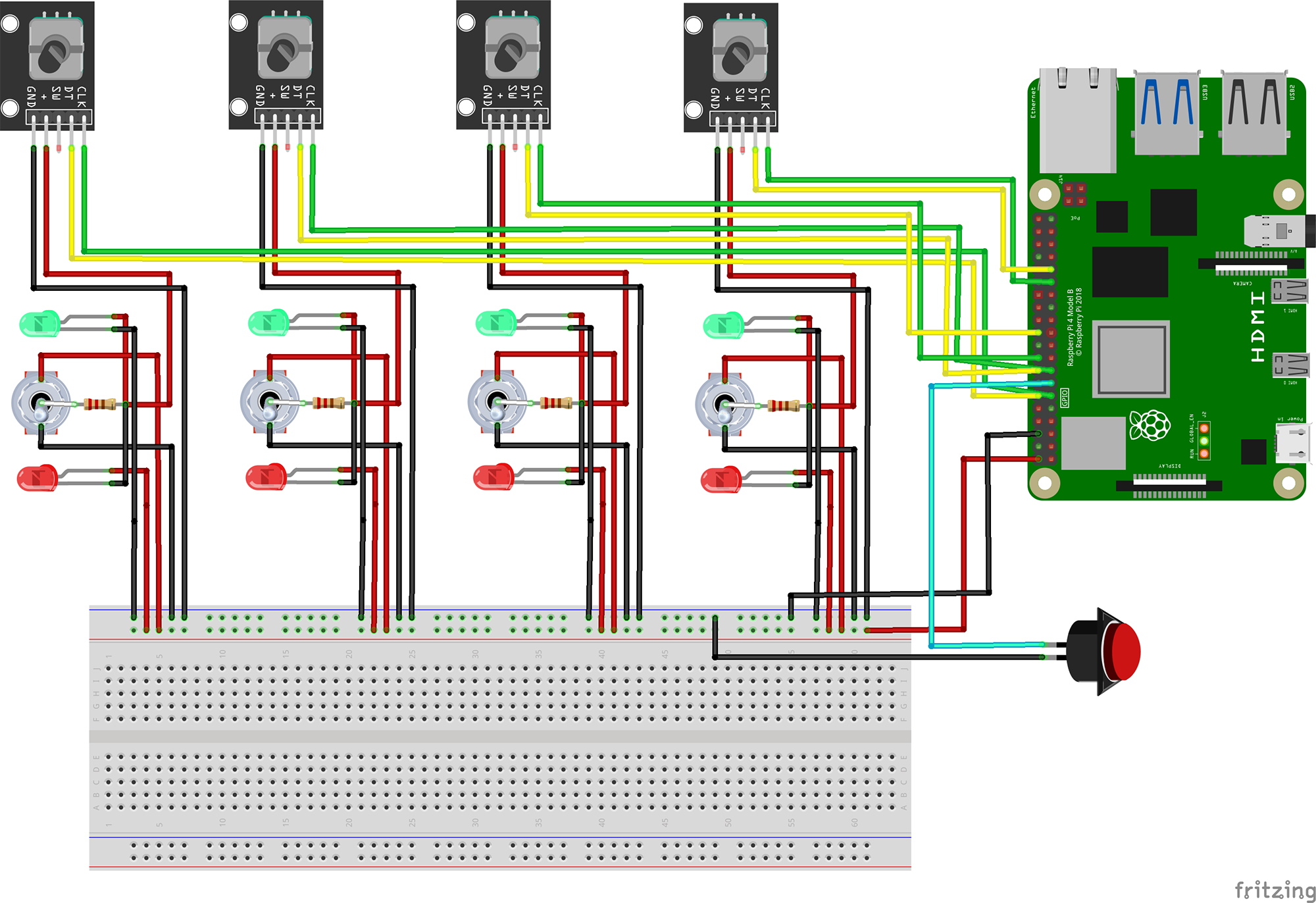

How Players Interact

• Observe current values: Display shows current mixture percentages and type
• Flip security override switch: The safe cap is lifted and switch is flipped to ON to enable power to a rotary encoder
• Adjust oxidizer: Rotate first encoder to set oxidizer percentage (0-100%)
• Adjust fuel: Rotate second encoder to set fuel percentage (0-100%)
• Adjust PBAN: Rotate third encoder to set binder percentage (0-100%)
• Select mixture type: Rotate fourth encoder to choose formula type (0-4)
• Activate check: Press button to verify the mixture
• Wait for analysis: 3.5-second checking period builds tension
• Read result: Display shows CORRECT or INCORRECT status

1Import Required Libraries

Import all necessary Python libraries for GPIO control, asynchronous operations, and WebSocket communication:

# GPIO control library
from RPi import GPIO

# Asynchronous programming support
import asyncio
import websockets

# Data serialization and utilities
import json
from datetime import datetime

What each library does:

RPi.GPIO: Provides low-level access to Raspberry Pi GPIO pins. Handles pin configuration, reading digital inputs, and managing pull-up/pull-down resistors.

asyncio: Python's asynchronous I/O framework. Enables concurrent operations without threading, perfect for handling multiple encoder inputs and WebSocket communication simultaneously.

websockets: Implements WebSocket client functionality for real-time bidirectional communication with the Node-RED server.

json: Handles conversion between Python dictionaries and JSON strings for message formatting.

2Global Configuration and Storage

Define persistent storage for encoder values and the solution:

# Store encoder values globally to persist across reconnections
ENCODER_VALUES = {
    1: 70,  # Oxidizer (0-100%)
    2: 50,  # Fuel (0-100%)
    3: 40,  # PBAN (0-100%)
    4: 0    # Mixture Type selector (0-4)
}

# Define the solution values
SOLUTION = {
    1: 55,  # Oxidizer target
    2: 25,  # Fuel target
    3: 10,  # PBAN target
    4: 3    # Mixture type target
}

BUTTON_PIN = 27  # GPIO pin for the activation button
CHECKING_TIME = 3.5  # Seconds to simulate checking process

Configuration explained:

Persistent values: ENCODER_VALUES maintains state across WebSocket reconnections, ensuring players don't lose progress if the connection drops.

Solution formula: The correct mixture is 55% Oxidizer, 25% Fuel, 10% PBAN with Mixture Type 3. This could represent a specific rocket fuel formulation.

Checking delay: The 3.5-second delay simulates a realistic analysis process, building tension during gameplay.

3Encoder Configuration

Set up the encoder pin mappings and status messages:

ENCODERS = [
    {'clk': 17, 'dt': 18, 'id': 1},  # Oxidizer
    {'clk': 22, 'dt': 23, 'id': 2},  # Fuel
    {'clk': 24, 'dt': 25, 'id': 3},  # PBAN
    {'clk': 5, 'dt': 6, 'id': 4}     # Mixture Type selector
]

WS_URI = "ws://localhost:1880/encoder"

# Status message constants
STATUS_MESSAGES = {
    'checking': {
        'status': 'CHECKING MIXTURE',
        'suffix': '. PLEASE WAIT'
    },
    'correct': {
        'status': 'CORRECT MIXTURE',
        'suffix': '. DO NOT TOUCH'
    },
    'incorrect': {
        'status': 'INCORRECTLY MIXED',
        'suffix': '. PLEASE REMIX AND REACTIVATE'
    }
}

Encoder mapping:

CLK and DT pins: Each rotary encoder uses two pins for quadrature encoding, allowing detection of both rotation direction and speed.

ID assignment: Each encoder has a unique ID (1-4) that corresponds to its function in the mixture control system.

Status messages: Pre-defined messages provide clear feedback to players through the escape room's display system.

4EncoderReader Class

Implement the main class that handles encoder reading and WebSocket communication:

class EncoderReader:
    def __init__(self, encoders):
        GPIO.setmode(GPIO.BCM)
        self.encoders = []
        self.checking = False

        # Setup button with pull-up resistor
        GPIO.setup(BUTTON_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP)

        # Initialize each encoder
        for enc in encoders:
            GPIO.setup(enc['clk'], GPIO.IN, pull_up_down=GPIO.PUD_UP)
            GPIO.setup(enc['dt'], GPIO.IN, pull_up_down=GPIO.PUD_UP)
            self.encoders.append({
                'clk': enc['clk'],
                'dt': enc['dt'],
                'id': enc['id'],
                'value': ENCODER_VALUES[enc['id']],
                'clk_last_state': GPIO.input(enc['clk'])
            })

    async def send_keepalive(self, websocket):
        try:
            await websocket.send(json.dumps({"type": "keepalive"}))
            print(f"{datetime.now()}: Keepalive sent")
        except Exception as e:
            print(f"Keepalive error: {e}")
            raise

Class initialization:

GPIO.BCM mode: Uses Broadcom pin numbering (GPIO numbers) rather than physical pin numbers for consistency.

Pull-up resistors: Internal pull-ups ensure stable HIGH state when encoders are not being rotated.

State tracking: Stores the last CLK state for each encoder to detect state transitions.

Keepalive messages: Prevents WebSocket timeout by sending periodic heartbeat messages.

5Solution Checking Logic

Implement the mixture validation and status reporting:

async def check_solution(self, websocket):
    if self.checking:
        return

    self.checking = True
    await self.send_status(websocket, 'checking')

    # Artificial delay to simulate checking process
    await asyncio.sleep(CHECKING_TIME)

    # Check if all encoders match solution
    correct = all(
        ENCODER_VALUES[enc_id] == SOLUTION[enc_id]
        for enc_id in SOLUTION.keys()
    )

    # Send result
    status_type = 'correct' if correct else 'incorrect'
    await self.send_status(websocket, status_type)
    print(f"{datetime.now()}: Current values: {ENCODER_VALUES}")
    print(f"{datetime.now()}: Target values: {SOLUTION}")

    self.checking = False

async def read_and_send(self, websocket):
    last_keepalive = 0
    last_button_state = GPIO.input(BUTTON_PIN)

    # Send initial incorrect status
    await self.send_status(websocket, 'incorrect')

    while True:
        current_time = asyncio.get_event_loop().time()

        # Send keepalive every 2 seconds
        if current_time - last_keepalive >= 2:
            await self.send_keepalive(websocket)
            last_keepalive = current_time

        # Check button state for activation
        button_state = GPIO.input(BUTTON_PIN)
        if button_state != last_button_state and button_state == GPIO.LOW:
            print(f"{datetime.now()}: Button pressed! Starting solution check...")
            await self.check_solution(websocket)
        last_button_state = button_state

        # Read each encoder
        for enc in self.encoders:
            clk_state = GPIO.input(enc['clk'])
            dt_state = GPIO.input(enc['dt'])

            if clk_state != enc['clk_last_state'] and clk_state == 0:
                # Determine rotation direction
                new_value = enc['value'] + (1 if dt_state != clk_state else -1)

                # Apply limits based on encoder type
                if enc['id'] != 4:
                    # Percentage encoders (0-100)
                    enc['value'] = max(0, min(100, new_value))
                else:
                    # Mixture type selector (0-4, wraps around)
                    enc['value'] = new_value % 5

                # Update global store and send to server
                ENCODER_VALUES[enc['id']] = enc['value']

                data = json.dumps({
                    'encoder': enc['id'],
                    'position': enc['value']
                })
                await websocket.send(data)

                # Reset to incorrect status after any change
                await self.send_status(websocket, 'incorrect')

            enc['clk_last_state'] = clk_state

        await asyncio.sleep(0.001)

6Main Connection Loop

Implement auto-reconnection and error handling:

async def main():
    while True:
        try:
            async with websockets.connect(
                WS_URI,
                ping_interval=1,
                ping_timeout=5,
                close_timeout=1,
                max_size=2**20,
                max_queue=2**10
            ) as websocket:
                print(f"{datetime.now()}: Connected to Node-RED")

                # Send current values immediately after connection
                for enc_id, value in ENCODER_VALUES.items():
                    data = json.dumps({
                        'encoder': enc_id,
                        'position': value
                    })
                    await websocket.send(data)
                    print(f"{datetime.now()}: Sent initial encoder data: {data}")

                reader = EncoderReader(ENCODERS)
                await reader.read_and_send(websocket)

        except websockets.exceptions.ConnectionClosed as e:
            print(f"{datetime.now()}: Connection closed: {e}")
        except Exception as e:
            print(f"{datetime.now()}: Error: {e}")
        finally:
            print(f"{datetime.now()}: Attempting to reconnect...")
            await asyncio.sleep(0.1)

if __name__ == '__main__':
    try:
        asyncio.get_event_loop().run_until_complete(main())
    except KeyboardInterrupt:
        print("\nProgram stopped")
        GPIO.cleanup()

Connection management:

Auto-reconnection: Infinite loop ensures the puzzle stays operational even after network interruptions.

Initial state sync: Sends all encoder values upon connection to synchronize with the server.

WebSocket parameters: Tuned for low latency with 1-second pings and reasonable buffer sizes.

Clean shutdown: GPIO.cleanup() ensures pins are reset when the program exits.

1Installation and Setup

Install the required Python libraries on your Raspberry Pi:

# Update package list
sudo apt-get update

# Install Python pip if not already installed
sudo apt-get install python3-pip

# Install required Python libraries
pip3 install websockets
pip3 install RPi.GPIO

# Verify installations
python3 -c "import RPi.GPIO; print('GPIO library installed')"
python3 -c "import websockets; print('WebSockets library installed')"

2Hardware Verification Script

Test your encoder connections with this simple verification script:

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)

# Test each encoder individually
encoders = [
    {'name': 'Oxidizer', 'clk': 17, 'dt': 18},
    {'name': 'Fuel', 'clk': 22, 'dt': 23},
    {'name': 'PBAN', 'clk': 24, 'dt': 25},
    {'name': 'Mixture Type', 'clk': 5, 'dt': 6}
]

for enc in encoders:
    GPIO.setup(enc['clk'], GPIO.IN, pull_up_down=GPIO.PUD_UP)
    GPIO.setup(enc['dt'], GPIO.IN, pull_up_down=GPIO.PUD_UP)
    print(f"{enc['name']}: CLK={GPIO.input(enc['clk'])}, DT={GPIO.input(enc['dt'])}")

# Test button
GPIO.setup(27, GPIO.IN, pull_up_down=GPIO.PUD_UP)
print(f"Button state: {GPIO.input(27)}")

print("\nRotate each encoder and press the button to see changes...")
try:
    while True:
        time.sleep(0.1)
except KeyboardInterrupt:
    GPIO.cleanup()

3Troubleshooting Common Issues

4Console Output During Operation

Monitor the console output to verify proper operation:

2024-01-15 14:23:45: Connected to Node-RED
2024-01-15 14:23:45: Sent initial encoder data: {"encoder": 1, "position": 70}
2024-01-15 14:23:45: Sent initial encoder data: {"encoder": 2, "position": 50}
2024-01-15 14:23:45: Sent initial encoder data: {"encoder": 3, "position": 40}
2024-01-15 14:23:45: Sent initial encoder data: {"encoder": 4, "position": 0}
2024-01-15 14:23:47: Keepalive sent
2024-01-15 14:23:49: Keepalive sent
2024-01-15 14:23:50: Sent encoder data: {"encoder": 1, "position": 55}
2024-01-15 14:23:51: Sent encoder data: {"encoder": 2, "position": 25}
2024-01-15 14:23:52: Sent encoder data: {"encoder": 3, "position": 10}
2024-01-15 14:23:53: Sent encoder data: {"encoder": 4, "position": 3}
2024-01-15 14:23:54: Button pressed! Starting solution check...
2024-01-15 14:23:54: Status sent - CHECKING MIXTURE. PLEASE WAIT
2024-01-15 14:23:57: Current values: {1: 55, 2: 25, 3: 10, 4: 3}
2024-01-15 14:23:57: Target values: {1: 55, 2: 25, 3: 10, 4: 3}
2024-01-15 14:23:57: Status sent - CORRECT MIXTURE. DO NOT TOUCH
